Mon-Fri 7 - 3.30 AESTType C – Aluminium Camlock Fitting
$3.67
In stock
SKU
TYPE-C-ACGC
Size Guide
Not sure what size to get? Let us help you find the perfect fit. We think you’ll find
this guide helpful, but if you still have questions send us an email at
support@mystore.com or call us at 1-800-123-1234. Your comfort is
our promise.
Not sure what size to get? We think you’ll find this guide helpful, but if you
still have questions send us an email at support@mystore.com or call us at
1-123-123-1234.
- Women
- Men
- Teen
- Kids
- Footwear
- Dog Pajamas
| Women | ||||||
| Chest | Waist | Hip | ||||
|---|---|---|---|---|---|---|
| XS 0-2 |
32-34 | 26-28 | 35-37 | |||
| S 4-6 |
34-36 | 28-30 | 37-39 | |||
| M 8-10 |
36-38 | 30-32 | 39-41 | |||
| L 12-14 |
39-42 | 33-35 | 42-44 | |||
| XL 16-18 |
43-45 | 36-38 | 44-46 | |||
| XXL 18-20 |
46-48 | 39-41 | 47-49 | |||
| How to Measure
Chest: Measure around the fullest part of chest, keeping the measuring tape up under arms and around shoulder blades. Waist: Measure around waist (not over pants) at the natural waistline. Hip: Measure around the fullest part of hips while standing straight with heels together. *Size chart is a general guide. It may include sizes that are unavailable for this item. All measurements are in inches unless otherwise noted. |
||||||
| Men | ||||||
| Chest | Waist | Neck | ||||
|---|---|---|---|---|---|---|
| S 36/38 |
36-38 | 28-30 | 14-14.5 | |||
| M 38/40 |
38-40 | 32-34 | 15-15.5 | |||
| L 40/42 |
42-44 | 36-38 | 16-16.5 | |||
| XL 46/48 |
46-48 | 40-42 | 17-17.5 | |||
| XXL 50/52 |
50-52 | 44-46 | 18-18.5 | |||
| How to Measure
Chest: Measure around the fullest part of chest, keeping the measuring tape up under arms and around shoulder blades. Waist: Measure around waist (not over pants) at the natural waistline. Neck: Measure around the neck allowing the measuring tape to lay on the neck base comfortably. *Size chart is a general guide. It may include sizes that are unavailable for this item. All measurements are in inches unless otherwise noted. |
||||||
| Teen | ||||||
| Chest | Waist | Hip | Height | |||
|---|---|---|---|---|---|---|
| XS 7/8 |
26-28 | 22-24 | 27-29 | 52-54 | ||
| S 9/10 |
28-30 | 24-25 | 29-30 | 55-56 | ||
| M 11/12 |
30-31 | 25-26 | 30-32 | 57-59 | ||
| L 13/14 |
31-32 | 26-28 | 32-34 | 60-62 | ||
| XL 15/16 |
32-33 | 28-30 | 34-36 | 62-63 | ||
| How to Measure
Chest: Measure around the fullest part of chest, keeping the measuring tape up under arms and around shoulder blades. Waist: Measure around waist (not over pants) at the natural waistline. Hip: Measure around the fullest part of hips while standing straight with heels together. Height: Measure from the top of the head and pull the tape straight down to the floor. Stand straight with both feet together (bare feet only). *Size chart is a general guide. It may include sizes that are unavailable for this item. All measurements are in inches unless otherwise noted. |
||||||
Swipe for more →
| Kids | |||||||||||
| Chest | Waist | Hip | Inseam | Height | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2T | 20-20.5 | 20-20.5 | 20-21 | 14-15 | 33-35 | ||||||
| 3T | 20.5-21 | 20.5-21 | 21-22 | 15-16 | 35-38 | ||||||
| 4T | 21-22 | 21.5-22 | 22-23 | 16-17 | 38-41 | ||||||
| 5/6 | 22-24 | 22-23 | 23-25 | 17-20 | 41-49 | ||||||
| 7/8 | 24-26 | 23-25 | 25-28.5 | 20-24 | 49-55 | ||||||
| 10/12 | 26-30 | 25-27 | 28.5-32 | 24-28 | 55-60 | ||||||
| 14/16 | 30-33 | 27-30 | 32-36 | 28-30 | 60-63 | ||||||
| How to Measure
Chest: Measure around the fullest part of chest, keeping the measuring tape up under arms and around shoulder blades. Waist: Measure around waist (not over pants) at the natural waistline. Hip: Measure around the fullest part of hips while standing straight with heels together. Height: Measure from the top of the head and pull the tape straight down to the floor. Stand straight with both feet together (bare feet only). *Size chart is a general guide. It may include sizes that are unavailable for this item. All measurements are in inches unless otherwise noted. |
|||||||||||
Swipe for more →
| Footwear | ||||||
| Women's | XS 5.5-6 |
S 7-8 |
M 9-10 |
L 10.5-11 |
XL 12-12.5 |
- |
|---|---|---|---|---|---|---|
| Men's | XS 4.5-5 |
S 6-7 |
M 8-9 |
L 9.5-10 |
XL 11-11.5 |
XXL 12.0-12.5 |
Swipe for more →
| Dog Pajamas | ||||||
| XS 8-12 |
Fits Toy Poodle, Chihuahua, Yorkshire Terrier | |||||
|---|---|---|---|---|---|---|
| S 12-16 |
Fits Jack Russell Terrier, Pug | |||||
| M 16-20 |
Fits Beagle, Dachsund | |||||
| L 20-24 |
Fits Schnauzer, Cocker Spaniel | |||||
| XL 24-28 |
Fits Pit Bull, Labrador and Golden Retrievers, German Shepherd | |||||
| How to Measure
Length: Measure your pet from the base of its neck to the base of its tail. Bump up a size if your pet has a thick coat, broad chest, or broad underside. *Size chart is a general guide. It may include sizes that are unavailable for this item. All measurements are in inches unless otherwise noted. |
||||||

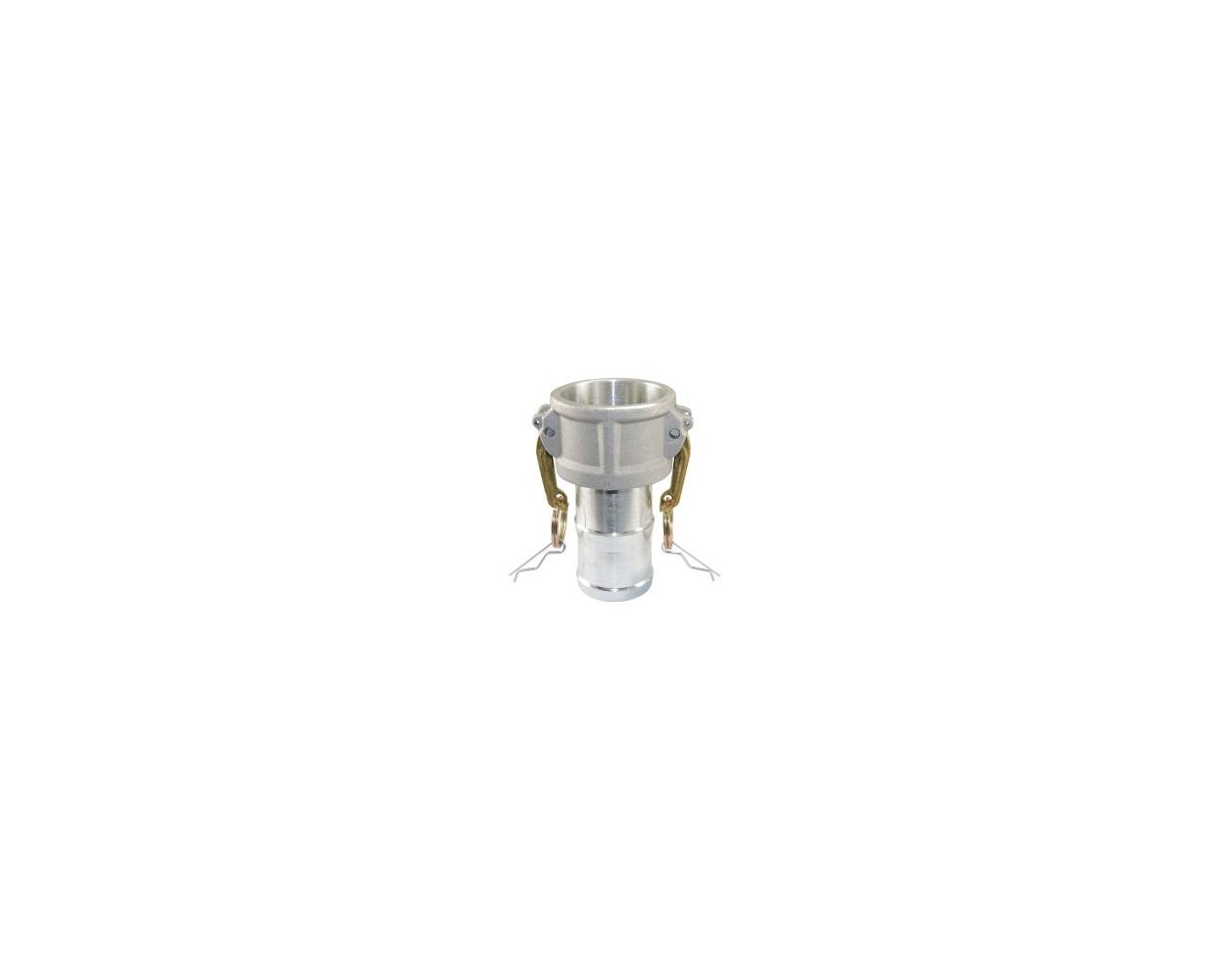

Female aluminium cam and groove Coupler with hose shank. Supplied with either machined hose barbs or alternately as multi-barbed with crimping provision. Used with a corresponding Adapter, Type A (female thread end) Type E (hose shank) Type F (male thread end) or Type DP (dust plug).

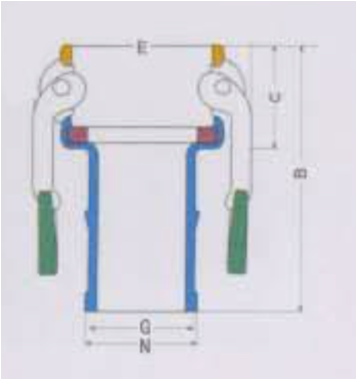

| Size(mm) | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 |
| B | 77 | 93 | 101 | 119.5 | 134 | 144.5 | 149.5 | 159 | 169 | 233.5 |
| C | 40.1 | 40.1 | 45.8 | 46.1 | 50.2 | 55.2 | 58 | 59.2 | 60 | 62 |
| E | 32.4 | 37.3 | 46 | 54 | 63.8 | 76.5 | 92.2 | 120.2 | 146 | 176.5 |
| G | 20 | 25.4 | 31.4 | 37.9 | 50.6 | 63.5 | 75.2 | 101 | 126.3 | 151 |
| Aluminum Type C Adaptor Dimentions |
| Description | Female aluminium cam and groove Coupler with hose shank. Supplied with either machined hose barbs or alternately as multi-barbed with crimping provision. Used with a corresponding Adapter, Type A (female thread end) Type E (hose shank) Type F (male thread end) or Type DP (dust plug).
|
|---|
