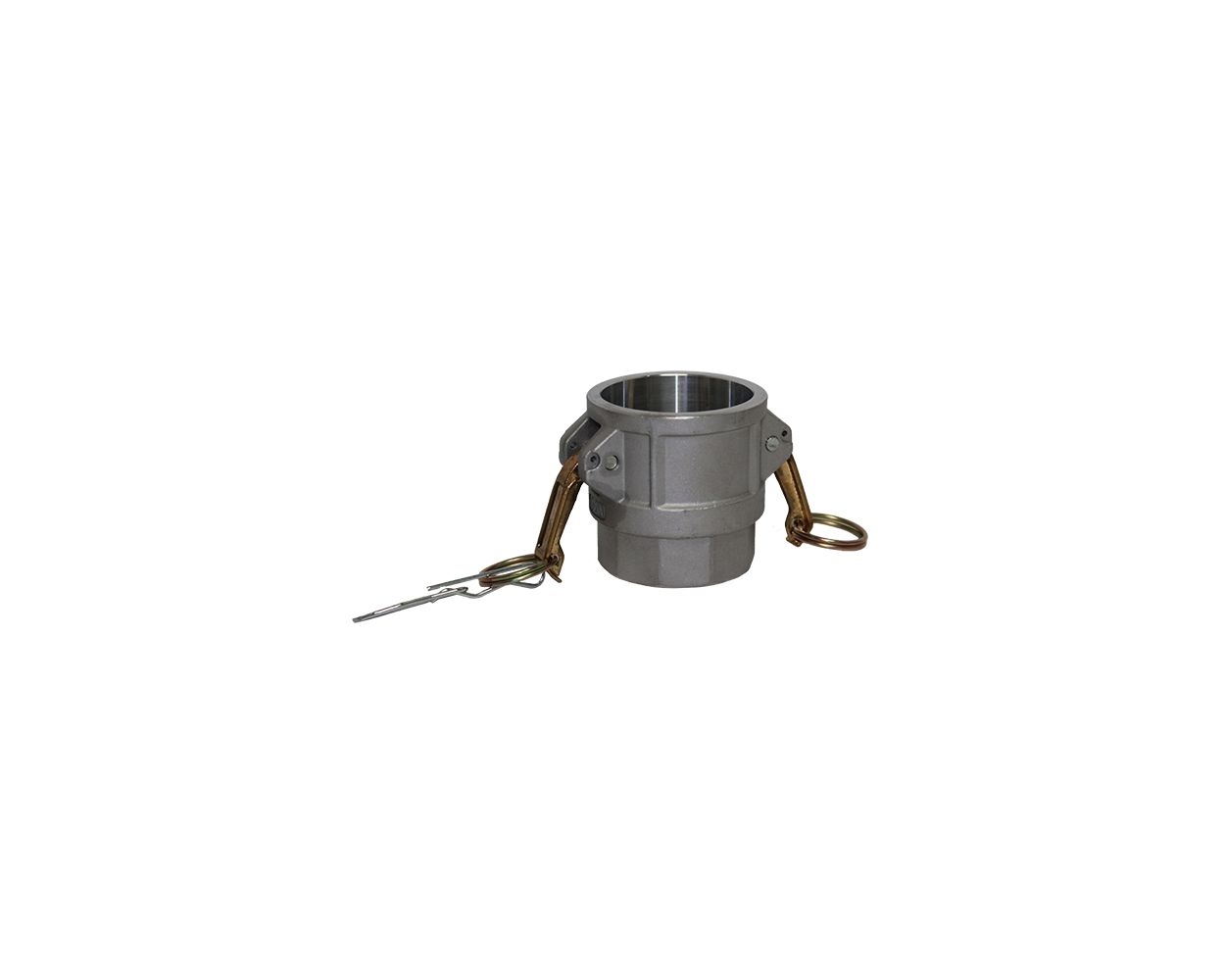

Aluminium Cam and Groove Female Coupler x Female BSP Thread
Female aluminium cam and groove Coupler with a female BSP thread of the same size. Used with corresponding Adapter, Type A (female thread end) Type E (hose shank) Type F (male thread end) or Type DP (dust plug).
| Size(mm) | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 |
| B | 54 | 60 | 71 | 71 | 76 | 86 | 92 | 95 | 96 | 100 |
| C | 40.1 | 40.1 | 45.8 | 46.1 | 50.2 | 55.2 | 58 | 59.2 | 60 | 62 |
| E | 32.4 | 37.3 | 46 | 54 | 63.8 | 76.5 | 92.2 | 120.2 | 146 | 176.5 |
| Aluminum Type D Adaptor Dimentions |
| Description | Female aluminium cam and groove Coupler with a female BSP thread of the same size. Used with corresponding Adapter, Type A (female thread end) Type E (hose shank) Type F (male thread end) or Type DP (dust plug).
|
|---|
